1991 BMW M3

Click on a picture for a larger view

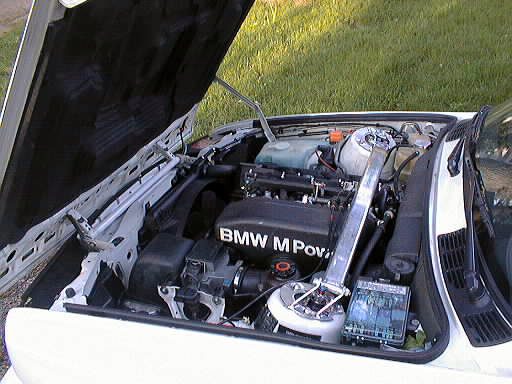

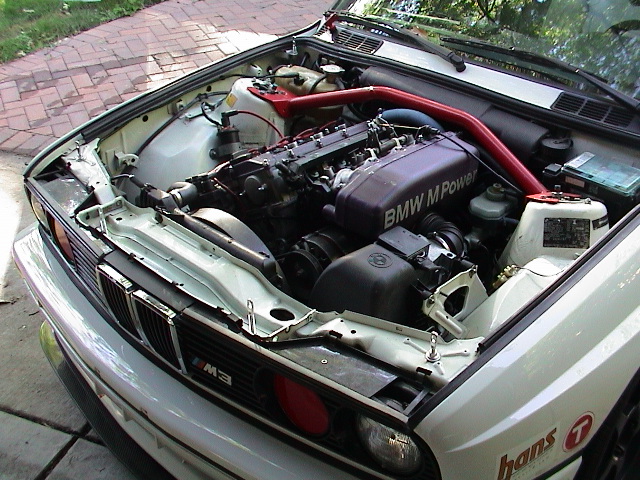

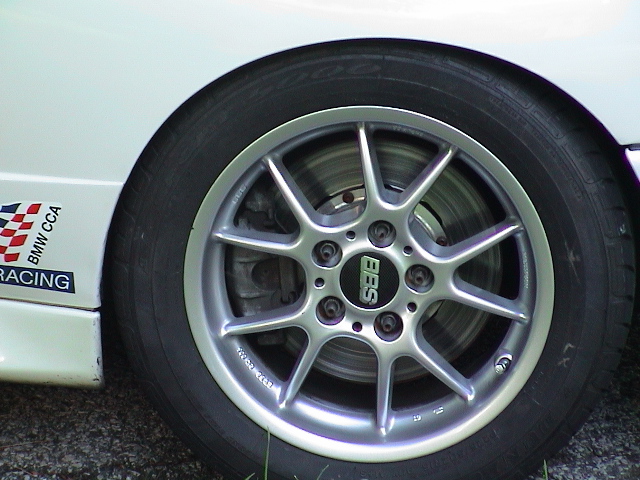

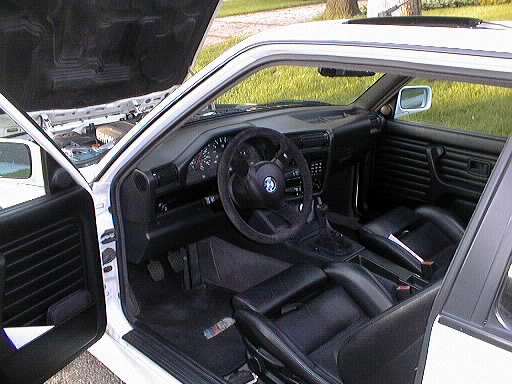

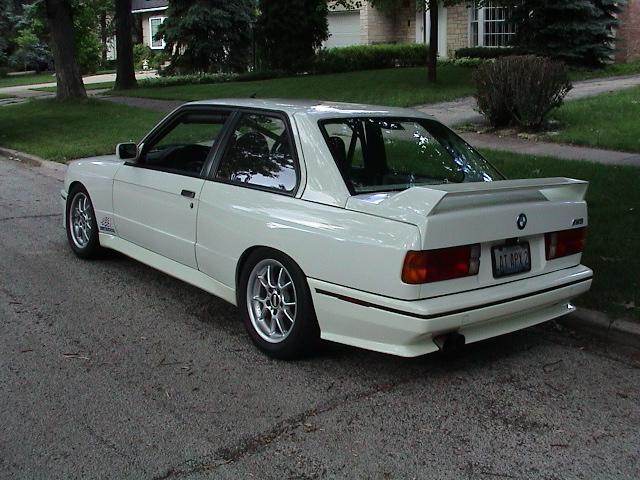

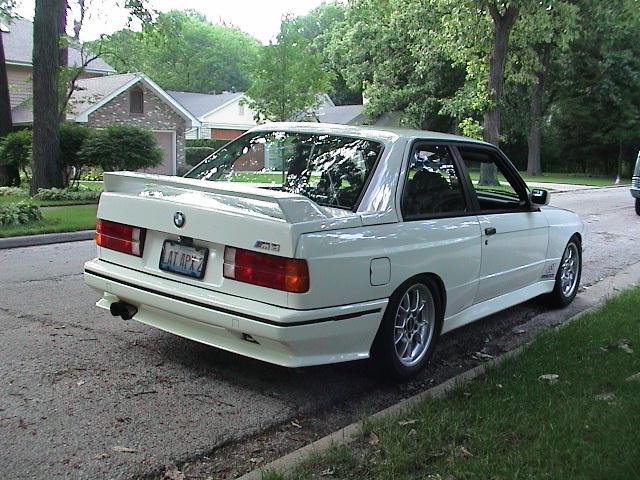

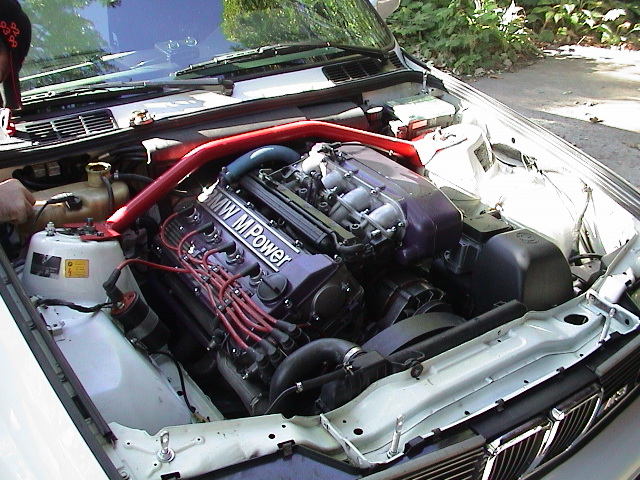

1991 M3 White with black Leather interior (originally) Powertrain Custom air intake w/ Evo2 lower air box and K&N Evo3 2.5 block with oil squirters Evo3 2.5 forged crank CP 11:1 forged pistons Arrow custom H-beam connecting rods ARP main studs ARP rod bolts Evo3 oil pump MLS head gasket Raceware head studs Adjustable cam gears S52 chain tensioner Heavy duty pressure plate and 6 puck solid disc clutch Schrick 284-11.5mm lift intake, 276-11.3mm lift exhaust cams 48mm throttle bodies Hand ported intake runners Evo2 Lightened flywheel Evo3 injectors & AFM Custom high performance valve springs Custom bronze alternator bushings Evo3 intake gaskets with port matched throttle bodies Supertech undercut stem valves: 39mm intake, 37mm exhaust Full radius valve job, ported bowls Evo2 header and custom 3. exhaust with Borla muffler Close-ratio transmission Group "N" engine rear main seal Magnecor Ignition with custom loom Under drive alternator pulley Oil System Upgrades and Cooling Custom oil pan baffle Custom oil cooler and air collector Accusump 1qt pre-oiler EPC system Wheels / Tires Street � BBS RK 16x8 with Dunlop SP5000s 225/50/16 Track - BBS RK powder-coated black with Kuhmo Victoracer 245/45/16 Suspension Ground Control front/rear full coilovers Suspension Techniques sway bars Adjustable front camber/caster Adjustable rear sub-frame for toe/camber Spherical bearings on all front pick up points Urethane bushings in trailing arms, sub frame and differential Sparco front strut brace Trailing arm and strut tube reinforcements Reinforced rear sway bar body mounts Reinforced rear sway bar pickup points Brakes Custom brake ducts E36 M3 front calipers and custom floating rotors with aluminum hats Brass front/rear brake caliper bushings Hawk Blue pads stainless braided lines Cockpit adjustable rear brake bias Miscellaneous Carbon fiber Evo3 front splitter Fiberglass hood Evo3 front grilles Evo3 hood gaskets and front bumper gasket Lightened by removing or reducing interior, sound deadening, A/C, P/S, heat shields, bumpers, dash trim, console, radio, trunk trim, sunroof, wiring harnesses, smaller battery Plexi-glass rear 1/4 windows Momo GT seats 8pt custom roll cage Pyrotect 5 pt harnesses E36 M3 shift lever Autometer oil pressure, fuel pressure gauges Autometer oil pressure warning light Split Second A/F ratio gauge Evo3 Steering wheel & shift knob Euro E30 manual steering rack with custom aluminum bushings in column BMW 850 master cylinder BMW 750 motor mounts BMW 535 transmission mounts Evo3 adjustable rear wing with carbon fiber flap Aluminum bulkhead/rear deck Reinforced motor mount pickup points M-coupe rear differential cover
